Introduction #

The purpose of this guide #

vMeasure Parcel Ultima is a straightforward product with minimal moving parts. Therefore, there is no complexity when it comes to the product. Yet the device needs the right environment and proper care to maintain its accuracy, reliability, and precision.
This guide specifies all the necessary precautions and best practices for the user. Following this document to the dot helps the end-user to gain the maximum benefit from the product and ensure its longevity.

How to use this guide? #

This guide enlists all the Dos and Don’ts during the setup, operation, and post-operation phase of vMeasure Parcel Ultima. It illustrates all the steps in clear and specific terms using photos. Some of the steps may even contain videos of that process to help the user understand better.

If you have any more queries reach out to vmeasure@visailabs.com

Key components in the document #

All the instructions have been split into various categories and sub-categories for ease of understanding.

Beginning of the shift #

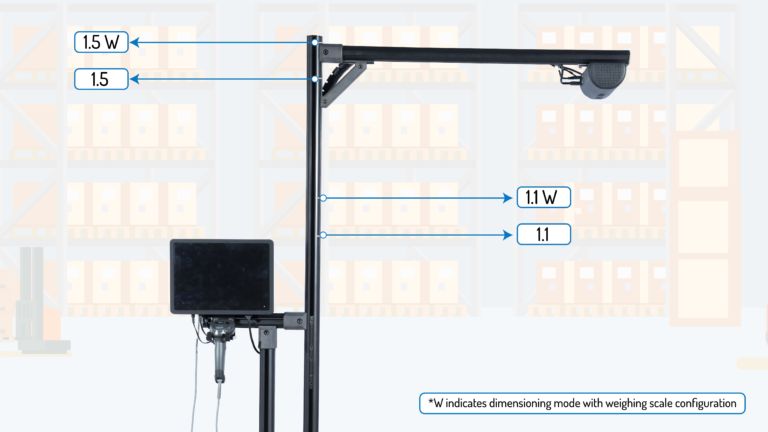

Accurately place the horizontal pole on the markings provided on the vertical pole as per the dimensioning mode

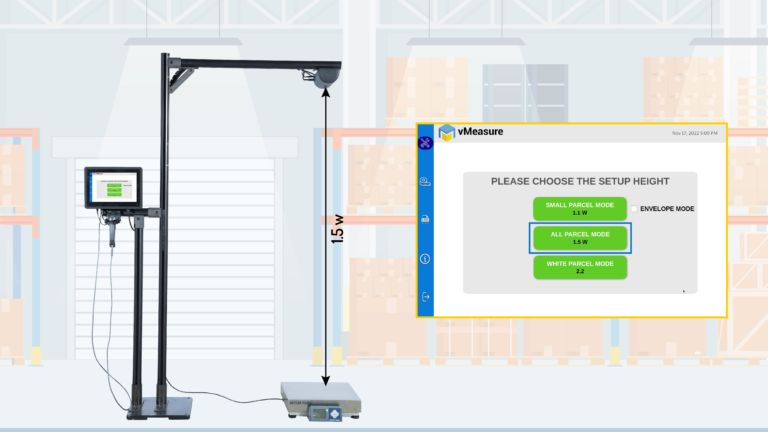

Calibrate the device in accordance with the pre-defined mount height set

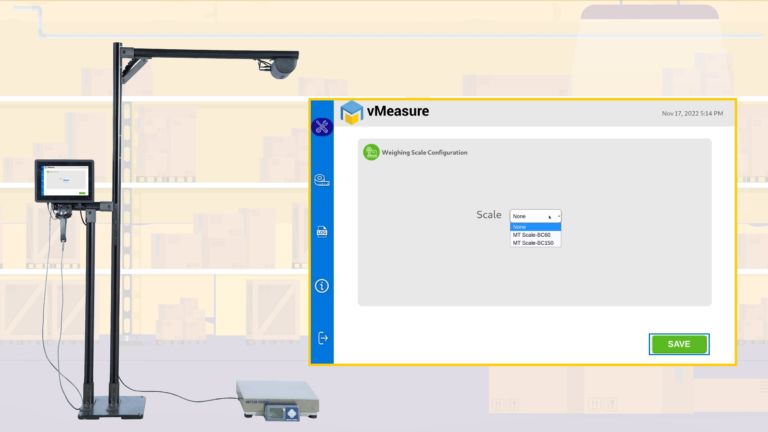

Make sure the appropriate weighing scale (if applicable) is selected before calibration

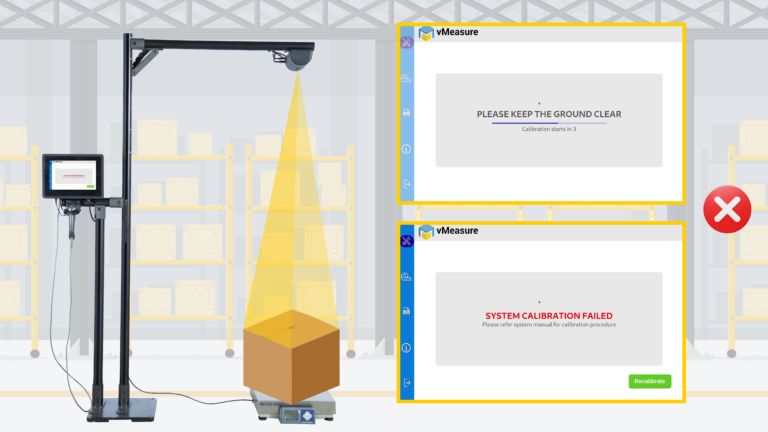

Do not place any items on the weighing scale during the system boot.

During the shift #

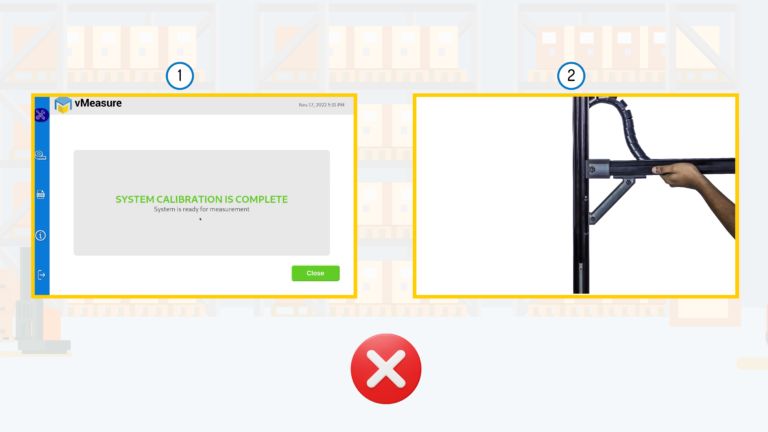

Do not adjust height after calibration.

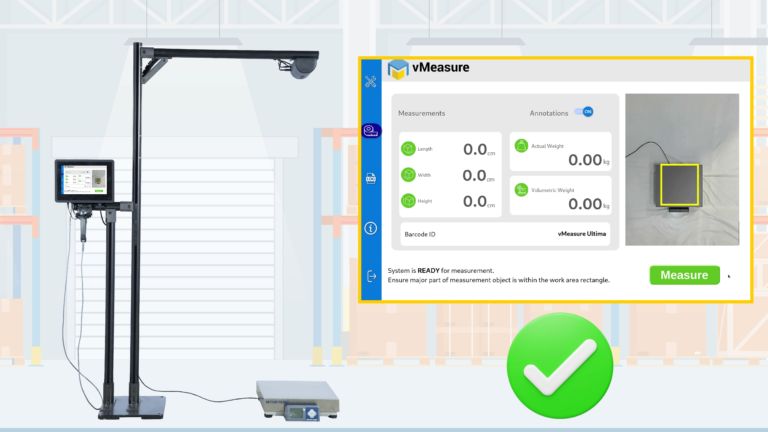

Make sure the weighing scale (if applicable) is placed inside the camera’s view

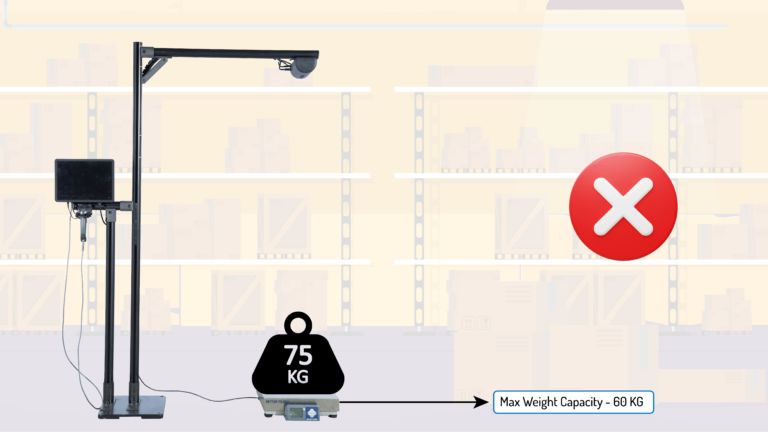

Do not place excess weight on the weighing scale to avoid damage.

After the shift #

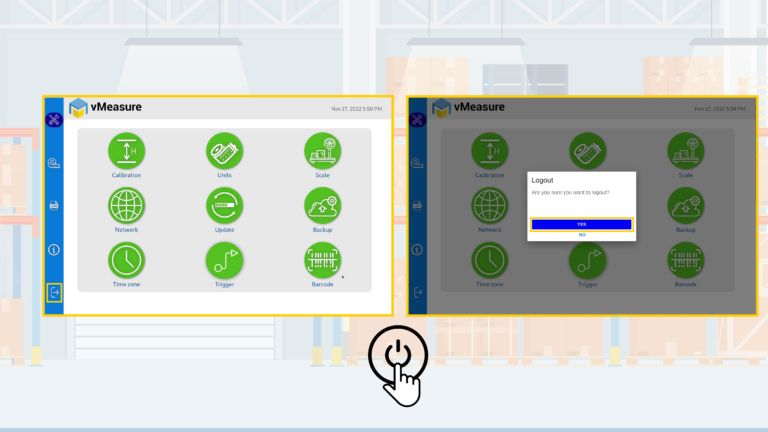

It is advisable to turn off the device after use.

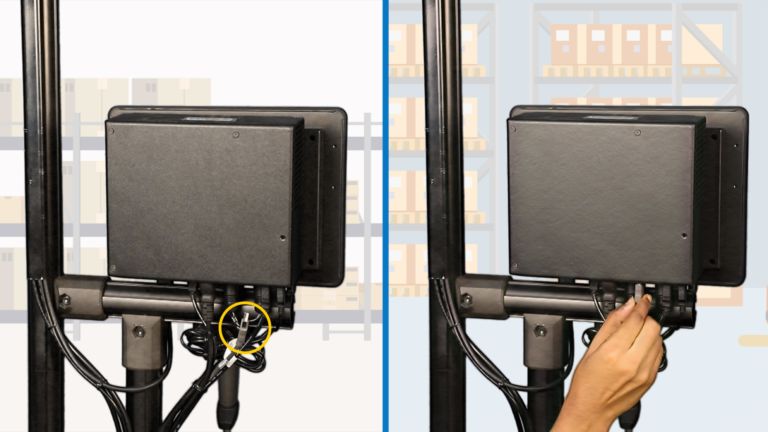

Do not disconnect the cables or peripherals unnecessarily
Do not move the vMeasure system unnecessarily
Do not adjust the mount heights unnecessarily

Resources #

Videos #

vMeasure Parcel Ultima Gold – Installation Video
vMeasure Product Setup
Calibrations – Do’s and Don’ts

Documents #

vMeasure Parcel Ultima – Datasheet

Support #

If you have any questions about our product or applications, contact our support team – send an email, call us, or use our contact form.
It might take a few minutes so that we can support you as efficiently as possible. While contacting, tell us:
  • The name of the product
  • The serial number of the product
  • The short description of the issue
  • The peripherals connected to the system for answering your questions
We will be happy to help you!
