Dimensioners at the price of a coffee per day

Cluttered pack station? vMeasure will fit anyways!​​

Reduce your dimensioning footprint by using our compact and easy-to-set-up dimensional scanner at the pack station.

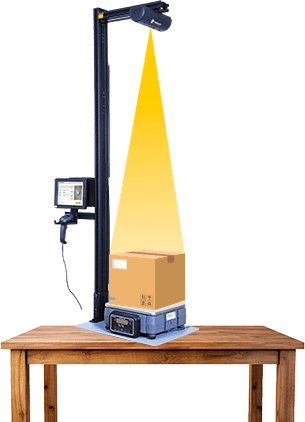

3PLs and E-commerce Retailers use the table mounting option
to fit tight packing stations

When to use a table mounting option?

The table mounting option for the dimensional scanners becomes your go-to solution if you want to make the best use of the available space at your crowded pack station depending on your use case.

Parcel Workflow

Ideal for small to medium parcels with a throughput of 300 – 350 parcels per hour.

Simple Setup

Useful when integrating complex inline systems, which is not feasible due to cost or practically limitations.

Space-Saving

Fits well in areas with limited space, measuring single parcels at a time.

Pop-up Stations

Ideal for temporary needs especially during peak seasons when extra dimensioners are needed.

Start dimensioning right from day 1. In less than 30 minutes

We make dimensioning simple, So why make the device installation of dimensional scanners complex?

vMeasure Parcel Ultima – dimensioning capabilities

Measure anything from small envelopes to mid-sized refrigerators with the vMeasure Parcel Ultima. Simply adjust the mount height to 1.1 or 1.5 meters for small and medium objects or use the separate hardware at 2.2 meters for larger items.
vMeasure Parcel Ultima Specifications
Minimum Dimensions
(L – W – H​)
1.2 x 1.2 x 0.8 in*
3 x 3 x 2 cm
(* For items below 0.8 inches in height, a special envelope base plate is required)
Maximum Dimensions
(L – W – H​)
39.4 x 29.5 x 17.7 in​
100 x 75 x 45 cm
Accuracy
Cubes/Cuboids – 0.2 in / 0.5 cm​
Other Objects – 0.4 in / 1 cm
Mounted on
Table / Mobile Cart / Mechanical Conveyor
Data captured
  • Annotated SKU/Parcel image​
  • Additional SKU/Parcel image​
  • Custom fields for additional data capture during measurement
* For items below 0.8 inches in height, a special envelope base plate is required​
vMeasure Parcel Ultima Specifications
Minimum Dimensions
(L – W – H​)
2 x 2 x 2 in​
5 x 5 x 5 cm
Maximum Dimensions
(L – W – H​)
53.1 x 41.3 x 33.5 in
135 x 105 x 85 cm
Accuracy
0.4 in / 1 cm
Mounted on
Table / Mobile Cart / Mechanical Conveyor
Data captured
  • Annotated image
  • Multiple angles of SKU/Parcel
  • Custom fields for additional data capture during measurement​
vMeasure Parcel Ultima Specifications
Minimum Dimensions
(L – W – H​)
3.9 x 3.9 x 3.9 in​
10 x 10 x 10 cm
Maximum Dimensions
(L – W – H​)
78.7 x 59.1 x 55.1 in​
200 x 150 x 140 cm
Accuracy
0.6 in / 1.5 cm​
Mounted on
Floor / Mechanical Conveyor
Data captured
  • Annotated image
  • Multiple angles of SKU/Parcel
  • Custom fields for additional data capture during measurement
Check out what 3PLs, Retailers, and Manufacturers have to say about vMeasure

Frequently asked questions

1. What considerations should be taken into account when selecting a mounting option for a dimensional scanners?

The mounting option must be selected based on the use case.
  • If you are using the dimensional scanners at your pack station, then a table mount would be a viable option.
  • In case you are using it for master data building or at your receiving station and require lot of footwork, then a mobile cart is the best mounting option.
  • If the parcels are measured at the sorting stations, then you can mount the device beside the mechanical rollers or stop and go conveyors.

2. Can the dimensional scanners be mounted at my pack station?

Yes. Our dimensional scanners can be readily mounted on a table at your pack station without the need for an elaborate setup or equipment.

3. How do I set up the dimensional scanners at my pack station?

Assemble the dimensional scanner on the floor. Then, lift it and place it on a table at your pack station. Make sure you have two people to lift the scanner.

4. How easy is it to setup and use the dimensional scanners?

The parcel dimensioner is completely DIY and takes less than 30 minutes to assemble. Once the operator is assigned to the device, then the operator can sign in and start dimensioning within the next few minutes.
Operators require minimal training because the dimensioning workflow is very simple and needs no technical knowledge.

5. How portable is the vMeasure dimensional scanner? Can it be easily moved between different stations?

The floor mount and table mount options are designed to be static. However, the mobile cart version can be easily moved between stations, and you can dimension parcels on the go.

Talk to the Dimensioning Experts

Still confused on what is the right first step with respect to capturing the Dims and weight of your SKUs/Parcels?
What do our customers say?​​

...vMeasure provided excellent support throughout the product integration process, with readily available and effective after-sales assistance…

Prakash Patania Senior Manager
Holisol

…They are now indispensable components in our shipping process and have allowed us to predict shipping costs accurately…

Joshua Hogeterp President
Bargain Book Stores

...With vMeasure, we were able to take the cloud-based solution literally under a day and under a far more achievable budget...

Rushil Mohan Co-Founder
Pidge

Request Free Trial
