What is a dimensional scanner?

A dimensional scanner is an automated system used to capture the length, width, and height of moving parcels on conveyor belts. It is designed for high-speed measurement in logistics operations, providing dimensional data in real time for shipping, cubing, and billing.

How does a dimensional scanner work?

A dimensional scanner uses 3D sensors, computer vision, and laser-based systems to scan parcels as they move through a conveyor system. It detects edges and contours to calculate dimensions in under a second and transfers the data to WMS, TMS, or carrier systems via software integration.

What is the accuracy or precision of dimensional scanners?

Most dimensional scanners offer accuracy between ±0.2 and ±0.5 inches, depending on the model and sensor type. Higher-end systems are calibrated for certified use and maintain precision even at conveyor speeds of 1–2 meters per second.

How much does a dimensional scanner cost?

Dimensional scanners typically cost between $10,000 and $40,000, depending on scan speed, accuracy, certification, and integration capabilities. Entry-level models are priced lower, while certified or high-speed systems cost more. vMeasure offers subscription-based pricing that reduces upfront hardware investment and includes software, updates, and support.

How to choose the right dimensional scanner?

Choosing the right dimensional scanner depends upon parcel volume, required speed, measurement accuracy, and compatibility with your conveyor setup. Also consider software integration, NTEP or OIML certification, and support for barcode or image capture if needed.

In-motion dimensional scanner

Increase Parcel Throughput with High-Speed Dimensional Scanners

Upgrade your existing conveyor with vMeasure in-motion dimensional scanner to accurately measure parcels and polybags at a speed of 2,000 to 3,000 parcels per hour.

Perfect for retailers scaling beyond static dimensioners or looking to enhance their current conveyor and checkweigher systems.

Measure any shapes and sizes in <1 second

With vMeasure In-motion dimensional scanner

What are the specifications of vMeasure dimensional scanner?

Our in-motion dimensional scanner for shipping is designed to precisely measure packages of any shape or size as they move through the conveyor system.

At the Mount Height:

vMeasure In-motion Dimensional Scanner Specifications
Min Dimensions	2 x 2 x 2 in \| 5 x 5 x 5 cm hidden text
Max Dimensions	20 x 15.8 x 15.8 in \| 50 x 40 x 40 cmhidden text
Measurement Accuracy	Cubes & Cuboids: 5 mm (0.2 in) Irregular Shapes: 10 mm (0.4 in)hidden text
Inter-box Distance	12 in \| 30 cm hidden textmobiledimension
Max Conveyor Speed	3 ft/sec \| 1 m/sechidden textmobile dimension
Conveyor Type	Flat Conveyor Belthidden textmobilediemnsion
Conveyor Belt Width	24-30 in \| 60-75 cmhidden textmobile dimension
Trigger Mechanism	Sensor mounted on the side of the conveyor
Mounting Type hi	Floor mount, typically drilled into the floor, with options for custom mechanical setups.

vMeasure In-motion Dimensional Scanner Specifications
Min Dimensions	2 x 2 x 2 in \| 5 x 5 x 5 cm hidden text
Max Dimensions	20 x 15.8 x 31 in \| 50 x 40 x 80 cmhidden text
Measurement Accuracy	Cubes & Cuboids: 10 mm (0.4 in) Irregular Shapes: 10 mm (0.4 in)hidden text
Inter-box Distance	12 in \| 30 cm hidden textmobiledimension
Max Conveyor Speed	3 ft/sec \| 1 m/sechidden textmobile dimension
Conveyor Type	Flat Conveyor Belthidden textmobilediemnsion
Conveyor Belt Width	24-30 in \| 60-75 cmhidden textmobile dimension
Trigger Mechanism	Sensor mounted on the side of the conveyor
Mounting Type hi	Floor mount, typically drilled into the floor, with options for custom mechanical setups.

See how vMeasure dimensional scanners fit into your operations

How vMeasure dimensional scanner measure 2,000–3,000 parcels per hour?

Built for high-volume warehouses, vMeasure dimensional scanners capture and process parcel data accurately without stopping the conveyor, ensuring consistent throughput at scale.

Place cartons, polybags, or irregular packages on the conveyor.
vMeasure captures length, width, height, weight, and barcode in real time.
Configured sortation logic can trigger sort or reject decisions based on custom workflows.
All captured data is instantly transferred to your connected WMS or shipping software.

How does vMeasure in-motion dimensional scanners stand out?

Using computer vision dimensioning technology, the vMeasure dimensional scanner fits into any operational environment while delivering repeatable accuracy and efficient workflow performance.

vMeasure dimensional scanners offer accurate parcel measurement. At competitive pricing with no compromise on performance. It accurately measures items at speeds up to 1.0 m/s, fitting fast-paced operations and any business size.

The vMeasure in-motion dimensional scanner used for shipping can be installed in less than four hours and handles small to large, irregular parcels without manual adjustments, ensuring smooth operation with minimal effort.

Our dimensional scanner easily integrates with flat conveyors and connects to automated barcode scanners via an Electronic Control Unit. With ethernet and USB support, it’s easy to set up and minimizes workflow disruption.

How vMeasure In-motion dimensional scanners improve operational efficiency?

As businesses scale, precise parcel handling is essential. Our in-motion dimensional scanner for shipping easily integrates with your existing conveyor for improved efficiency.

Picking and Sorting

vMeasure dimensional scanners automates parcel sizing, improving packing choices, reducing shipping errors, and speeds up order picking.

Packaging and Labelling

Automating parcel measurement and label generation ensures accurate packaging materials, reducing waste, and optimizes shipping costs.

Inventory Handling

vMeasure dimensional scanners captures accurate item sizes on the move, optimizing space management and ensuring efficient storage allocation.

Delivery Operations

vMeasure dimensional scanners eliminates manual package handling, reducing damage risk, increasing throughput, and lowering overall labor costs.

Want to know the full capabilities of our in-motion dimensional scanners?

See what our customers say about vMeasure dimensioners

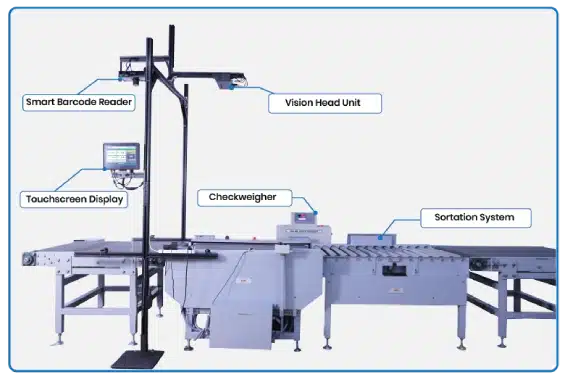

What’s included with the purchase of our in-motion dimensional scanners?

1 2 3 4 5 6

vMeasure dimensional scanner is delivered as a complete, station-ready setup. Each component is designed to work together to capture accurate dimension data reliably in active warehouse environments.

Vision Head Unit (Always in Warranty)
Automated Barcode Scanner (Always in Warranty)
Mount
Touch Screen Display
Checkweigher
Sortation System

How does vMeasure forge enhance dimensioning operations?

vMeasure forge is a cloud-based dimensioning intelligence and enterprises software integration platform, free with every vMeasure product dimensional scanner purchase, which allows you to:

Still confused about investing in our dimensional scanner?

Frequently asked questions

1. What is an In-motion dimensional scanner?

An in-motion dimensional scanner is a device that measures the dimensions (length,width,height) of packages as they move along a conveyor, providing real-time data for logistics operations.

2. How does a dimensional scanner for shipping work?

Dimensional scanner for shipping use computer vision to capture the length, width, and height of parcels in real time. As the package moves through the conveyor—the system calculates dimensional weight and sends the data to your shipping or warehouse software.

3. What is the dimensional scanners price?

A parcel scanner online is a mobile application that allows users to measure parcel dimensions, weight, and other attributes digitally with their iPhones or iPad, often without requiring dedicated hardware. Learn more about: Mobile Dimensioning – vMeasure.

4. How to choose a dimensional scanner for a warehouse?

A parcel barcode scanner is a device or application that scans barcodes on parcels to retrieve data such as tracking information, SKU details, and shipping labels.

5. What are the installation requirements for an dimensional scanner for shipping?

Yes, vMeasure offers a parcel scanner app that allows you to scan parcel dimensions directly from your mobile device. It’s designed for quick, manual dimensioning when portability is required. However, it operates as a separate product from the in-motion dimensioner.

6. Is it possible to integrate the In-motion dimensional scanner with existing warehouse management systems?

A parcel scanner machine like vMeasure automates parcel measurement and data capture. It scans packages in motion, instantly sending weight and dimensional data to your labeling or warehouse system. This streamlines your shipping process, reduces manual errors, and helps you avoid costly dimensional weight surcharges.

7. How fast can packages be processed by the In-motion dimensional scanner?

The vMeasure in-motion parcel scanner uses an integrated barcode scanner to capture barcodes in real-time as parcels move on the conveyor. It scans without stopping the flow, ensuring fast, seamless data transfer for accurate labeling.

8. What all can dimensional scanners for shipping measure?

Our plug and play parcel scanner is easy to setup and requires minimal maintenance, but regular calibration checks and cleaning of the scanning sensors are recommended to ensure optimal performance.

9. What is the throughput of vMeasure in-motion dimensional scanner?

Yes. Most parcel scanners, including vMeasure, integrate through standard protocols like TCP/IP, API, or FTP to communicate with print & apply units and label management software.

10. Do vMeasure dimensional scanners support barcode scanning along with dimension capture?

Yes. vMeasure in-motion parcel scanner measures irregular shapes like polybags and odd shaped SKUs with an accuracy of 0.4 inches, maintaining reliable data for every shipment.

11. What is the best dimensional scanner for warehouses?

No. vMeasure measures dimensions while parcels move continuously along the conveyor, maintaining high throughput without pausing or manual intervention.

12. How to check product dimensions using dimension scanner?

A parcel scanner is used on conveyor lines, packing exits, sortation lines, end-of-line shipping areas, and print-and-apply stations where parcels need to be measured, scanned, and labeled before dispatch.

Talk to the dimensioning experts

Still unsure about procuring a product dimensions scanner for your operations to capture the accurate dimensions, weight, and volume of your SKUs or parcels?

What do our customers say?

"…They are now indispensable components in our shipping process and have allowed us to predict shipping costs accurately…"

"...vMeasure provided excellent support throughout the product integration process, with readily available and effective after-sales assistance…"

"...With vMeasure, we were able to take the cloud-based solution literally under a day and under a far more achievable budget..."

In-motion dimensional scanner​​
