What is a dimension scanner app?

A dimension scanner app is an iOS mobile application that uses an iPhone’s LiDAR camera to measure the length, width, and height of packages.

How does a package dimension scanner help in shipping?

The package dimension scanner automates package measurement, reduces manual errors, and speeds up order processing. This helps shippers avoid extra charges and improves space planning in transport.

What is the size range supported by a dimension scanner?

Most dimension scanners support sizes from small items like 1.2×1.2×0.8 inches up to larger packages around 53×41×33 inches.

Who should use a package dimension scanner?

Shippers, e-commerce warehouses, 3PLs, and carriers that handle many small or medium parcels should use package dimension scanners.

How much does a product dimension scanner cost?

The cost of a product dimension scanner typically starts from $2,860 for standard models. Pricing may vary based on factors like scanning speed, accuracy, and whether the unit includes software or integration features.

Dimension scanner

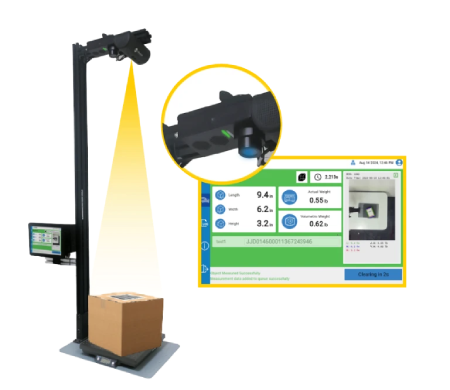

vMeasure Parcel Ultima Plus

Dimension scanner with Automated Barcode Scanning for Retailers, OEM Manufacturers, and 3PLs

Our dimension scanner automatically dimensions, weighs, and scans barcodes in under one second, reducing mislabeling and improving inventory tracking ensuring faster parcel processing.

Dimensions, weigh and scan any shapes and sizes in <1 second

With vMeasure dimensions scanner

vMeasure Dimension Scanner- Dimensioning Capabilities

Measure anything from small envelopes to mid-sized refrigerators with the vMeasure dimension scanner.

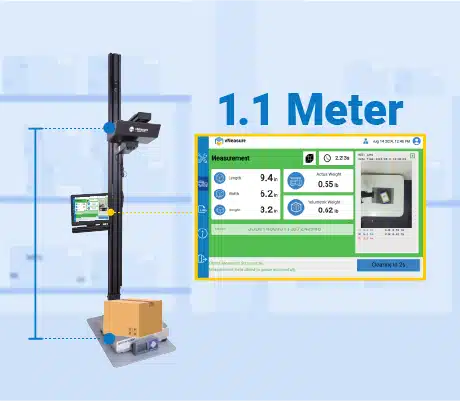

At the Mount Height:

vMeasure dimension scanner specifications
Minimum Dimensions (L – W – H)	1.2 x 1.2 x 0.8 in * 3 x 3 x 2 cm (* For items below 0.8 inches in height, a special envelope base plate is required)
Maximum Dimensions (L – W – H)	39.4 – 29.5 – 17.7 in * 100 – 75 – 45 cm (* Maximum dimensions are independent axis limits and may not be achieved together; measurable length and width vary with object height.)
Accuracy	Cubes/Cuboids – 0.2 in / 0.5 cm Other Objects – 0.4 in / 1 cm
Mounted on	Table / Mobile Cart / Mechanical Conveyor
Barcode Specifications	1D: Code128, Code39, UPC, Code 93, Codabar, ITF-14 2D: QR Code, Data Matrix, Aztec Code, PDF417
Data captured	Annotated SKU/Parcel image Additional SKU/Parcel image Custom fields for additional data capture during measurement

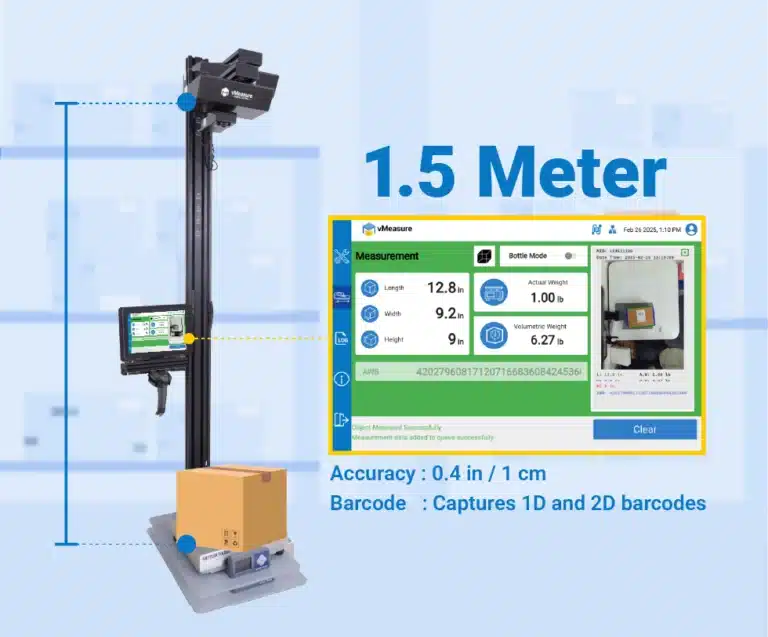

vMeasure dimension scanner specifications
Minimum Dimensions (L – W – H)	2 x 2 x 2 in 5 x 5 x 5 cm
Maximum Dimensions (L – W – H)	53.1 – 41.3 – 33.5 in * 135 – 105 – 85 cm (* Maximum dimensions are independent axis limits and may not be achieved together; measurable length and width vary with object height.)
Accuracy	0.4 in / 1 cm
Mounted on	Table / Mobile Cart / Mechanical Conveyor
Barcode Specifications	1D: Code128, Code39, UPC, Code 93, Codabar, ITF-14 2D: QR Code, Data Matrix, Aztec Code, PDF417
Data captured	Annotated image Multiple angles of SKU/Parcel Custom fields for additional data capture during measurement

See how product dimension scanner fits into your operations

What you get with the vMeasure dimension scanner?

The vMeasure package dimension scanner is designed to streamline parcel processing, making it faster and more efficient with automated barcode scanning.

Quick & Accurate Scanning

vMeasure dimension scanner measures parcels in under 1 second with 99% accuracy, ensuring reliable automatic barcode scanning.

Smart Barcode Mapping

Intelligent barcode mapping with Regex accurately identifies and extracts the correct barcode information from your data set.

Capture Up to 5 Barcodes

Our dimensions scanner captures up to five 1D and 2D barcodes accurately within a dedicated 1x1-foot area beneath the camera.

4K Parcel Imaging

Get ultra-clear 4K images of your parcels, providing detailed visuals that are perfect for documentation and quality control.

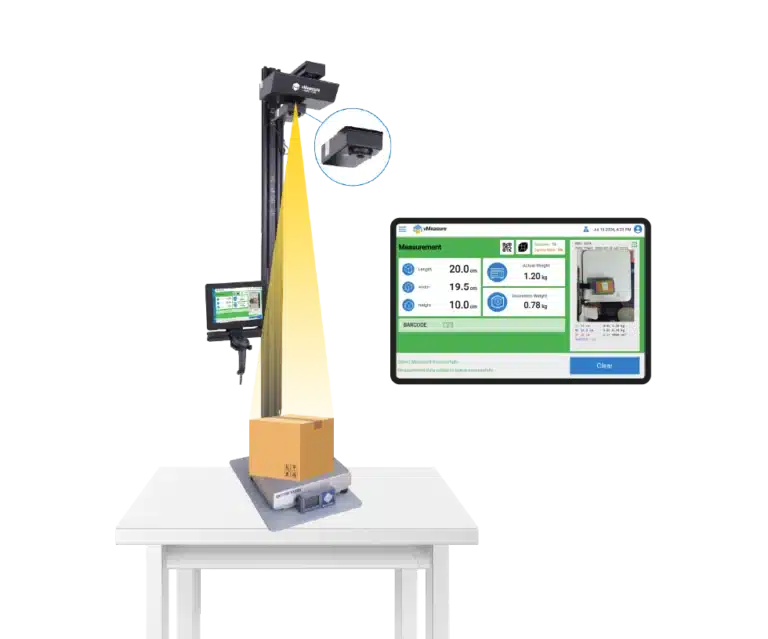

How does the vMeasure dimension scanner work?

The vMeasure dimension scanner is quick to set up and easy to use, allowing you to simplify your shipping process with minimal effort.

Automatically captures barcodes
Triggers dimension and weight measurements
Captures images with annotations
Captures 4K image of the parcel
Stores data securely in the cloud

Certified for Accuracy. Trusted for Security.

NTEP Certified - vMeasure dimension machine are certified by the National conference on weights and Measures, validating its accuracy and legal-for-trade performance in commercial use
SOC 2 compliant - With SOC 2 compliance, vMeasure dimension machine meets rigorous data security and privacy standards, ensuring your dimensional data is securely stored in the cloud.

Still deciding? Let’s discuss more with our dimensioning experts

Why is the vMeasure dimension scanner right for your workflow?

The vMeasure dimensions scanner is built for modern warehouses and fulfillment operations, delivering speed, accuracy, and efficiency, even with high-volume shipments.

Faster Parcel Processing

Automatically scan, dimension and weigh any shaped parcels in under a second, reducing the processing time and maximizing throughput for faster turnaround.

Visual Documentation

vMeasure dimensions scanner offers 4K image of the parcel along with the annotated images ensuring precise documentation for each shipment reducing disputes or errors in parcel handling.

Seamless Integration

Integrate the vMeasure product dimension scanner with your existing WMS, ERP, TMS, or shipping software through no-code APIs and webhooks, so measurement, weight, barcode, and image data move directly into your workflow without manual entry.

See what our customers say about vMeasure dimensioners

Go beyond dimensioning with vMeasure Forge: Our SOC-2 certified Cloud Platform

vMeasure Forge – our cloud-based dimension scanner software lets you customize the vMeasure package dimension scanner to match your packing and receiving workflows.

Frequently asked questions

1. What is a dimension scanner?

A dimension scanner is an automated device that measures the length, width, height, and weight of packages, parcels, polybags or any sized SKUs in less than a second using computer vision technology.

2. How does a dimension scanner work?

A dimension scanner uses laser, cameras, LiDAR, or infrared sensors to scan a package and calculate its length, width, height, and weight in real-time. The collected data is then transmitted to WMS, TMS, or shipping carriers for precise billing, load planning, and inventory management.

3. What are the benefits of using a dimensions scanner in a warehouse?

A dimensions scanner enhances warehouse operations by:

Eliminating manual measurement errors, ensuring accurate freight billing
Speeding up inbound and outbound logistics, reducing processing time
Optimizing storage space, improving warehouse organization and efficiency
Seamlessly integrating with logistics software, ensuring real-time data accuracy
Preventing unexpected carrier surcharges, ensuring proper DIM weight calculations

Solutions like vMeasure dimension scanner help businesses streamline warehouse operations while reducing labor costs.

4. What is the price of a dimension scanner?

The cost of a dimension scanner varies by technology, accuracy, integration, and speed. Entry-level models start around $2,860, while advanced computer vision-powered, cloud-integrated scanners cost more. For a custom quote, contact us or check out our pricing page.

5. How accurate are camera-based dimension scanners?

Camera-based dimension scanners like vMeasure can achieve high accuracy, typically within 0.2 to 0.4 inches (5 mm to 10 mm), depending on the size and type of the parcels or SKUs being measured.

6. Is there a scanner app to dimension parcels?

Yes, there is a mobile dimension scanner app that turns your iPhone into a dimensioner, providing instant, on-the-go dimensioning. The vMeasure dimension scanner app (compatible with iPhone 13 Pro and later Pro models) even integrates with WMS and shipping software. You can download this for FREE.

7. What does dimension scanner software do?

Dimension scanner software is a cloud platform solution that processes and stores the captured dimension data from automated scanners. You can retrieve the dimensioned data any time from the cloud to your local system or can push directly to your exiting WMS/ERP/TMS or multi-carrier shipping software.

8. What sets vMeasure Parcel Ultima Plus apart from other dimension scanners?

Our dimension scanner combines high-speed processing, 4K imaging, and the ability to capture multiple barcodes at once, making it an all-in-one solution that offers superior accuracy and efficiency.

9. How easy is it to set up and start using vMeasure dimension scanner?

Setting up the vMeasure dimension scanner is simple and straightforward. The plug-and-play system gets up and running in 30 minutes, without the need for advanced technical skills. The user-friendly interface ensures your team can start using it right away with minimal training.

10. How secure is the data captured by the vMeasure parcel dimension scanner?

vMeasure is the only dimensioning solution that is SOC2 certified, ensuring that parcel dimensions and images are securely transferred between systems.

11. Can the vMeasure Parcel Ultima Plus dimension scanner integrate with our existing IT infrastructure?

Yes, the vMeasure Parcel Ultima Plus dimension scanner can integrate with a variety of existing IT systems, including WMS, TMS, shipping software, and Enterprise Resource Planning (ERP) systems through our cloud-based dimensioning solution software. This allows for seamless data transfer and improved efficiency.

12. Can the dimension scanner app capture barcodes and images?

Absolutely. The dimension scanner app can capture barcodes and images of parcels. This helps in traceability, documentation, and dispute resolution.

Talk to the dimensioning experts

Still unsure about procuring a dimension scanner for your operations to capture the accurate dimensions, weight, and volume of your SKUs or parcels?
