Fairbanks SCB R9000 14U

How to integrate Fairbanks-SCB-R9000-14U weighing scale with vMeasure?

Wire Connection

Fairbanks
Fairbanks
weighing-scale-powerbox
Step 1: Connect the weighing scale to one of the USB ports of the Power Box as shown in the above image
Discover the simplicity of weighing scale integration with our step-by-step guide
Download the 'How-to' Guide

Weighing Scale Selection on the vMeasure Touchscreen

Step 2: After logging in to vMeasure, navigate to the Scale menu.

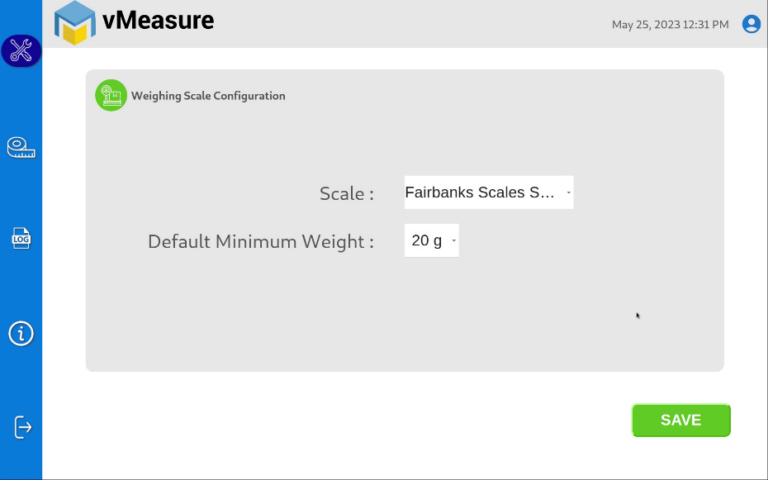

Step 3.1: Choose Fairbanks-SCB-R9000-14U from the list of weighing scales.
Step 3.2:
Default Minimum Weight: Select the minimum weight that needs to be displayed by default when the actual weight of the product is very light.
Some warehouse management systems would not consider products weighing closer to zero and this setting ensures that the minimum weight requirement is maintained.
Click save to finish the weighing scale integration.
Note:
The unit selected should match with the unit configured on the weighing scale.
Step 3.3:
After confirming the uniformity between the unit selected on vMeasure and the unit displayed on the weighing scale, press Save to finish the weighing scale integration.
Weighing scale not connected?
Click here to troubleshoot

Calibration

Step 4:
Click on the Calibration menu.
Step 5:
Select the appropriate setup height.
Step 6:
Wait for 5 seconds for the system to calibrate.
Step 7:
Upon successful calibration, your weighing scale will be ready for use.
Unsuccessful Calibration?
Click here to troubleshoot
Plug and Use
Integrate on the go with a simple USB connection to the vMeasure Parcel Ultima’s Power Box.
One-click Integration
Easy and quick integration at the click of a weighing scale model from a dropdown menu.
No coding required
The integration requires no coding knowledge and is made possible with minimal steps.
Supports Roller-top variants*
vMeasure Parcel Ultima can integrate with roller-top variants of select weighing scale models such as Fairbanks and Mettler Toledo.
How well did we answer your query?

vMeasure Parcel Ultima
The world’s first and only Dimensioning as a Service (DIMaaS).

Dimension everything from an envelope/lipstick to a refrigerator using a single device at the cost of a coffee per day.
Schedule a Demo
View Pricing Plans
Close

Troubleshooting

  • - Check whether Fairbanks-SCB-R9000-14U is selected and that the choice matches with the model of the weighing scale you are trying to integrate.
  • - Ensure the wire is properly connected.
  • - Check whether the units on the weighing scale and the unit selected on the vMeasure Touchscreen matches.
  • - There could be some fluctuations or a negative weight in the weighing scale readings due to unstable platform.
  • - Ensure the object’s weight does not exceed the maximum weight capacity of the selected weighing scale.
  • - If the device shows an error stating “Unable to read or write data to the scale” on the measurement page, try the following steps:
    • Check for loose wire connections.
    • Reconnect the wires and reselect the weighing scale in the scale menu.
    • Recalibrate the device.
Close

Troubleshooting

  • - Check whether the surrounding (at least 3 cm around the device) is clear and free from external disturbances.
  • - Ensure you select the appropriate setup height in the Calibration menu.
  • - Remove the object, if any, on the weighing scale during calibration.
