There is a moment in almost every warehouse operation where someone pulls out a tape measure, crouches next to a pallet, and writes the measurement on a piece of paper, and moves on. It happens dozens of times a day. And almost every time, those numbers are inconsistent, wrong reference, no image, no timestamp, no way to trace them back when a freight claim lands on your desk three weeks later.
That is the problem a static pallet dimensioning system is built to solve. Not just measurement. A repeatable, provable, connected measurement process.
What Is a Static Pallet Dimensioning System?
A static pallet dimensioning system is a fixed measurement station used to capture the outer dimensions of palletized freight.
The pallet is placed in a defined scan zone. The system measures the pallet’s maximum length, width, and height as it sits in that zone. In many warehouse setups, the scan is also linked to a pallet ID, shipment ID, order number, BOL, LPN, PO number, or some other business reference.
It is a good fit for warehouses that already send pallets through receiving, staging, pallet audit, dispatch checks, carrier handoff, or freight documentation points.
A static system is usually a better fit when:
- Pallets already pause at a known checkpoint
- Measurement needs to be repeatable
- The warehouse wants a cleaner scan history
- Operators need to connect measurement data with shipment records
- The process needs image proof or freight audit support
- Pallet data needs to move into a WMS, TMS, ERP, rate engine, or carrier workflow
Where Should Static Pallet Dimensioning Be Used?
Static pallet dimensioning should be placed right at a point where pallets already stop, wait, get checked, or pass through a required step. The best location is not always the largest open area. It is the point where pallet measurement fits into the normal warehouse flow.
Common locations include receiving checkpoints, pallet audit stations, outbound staging, scale stations, dispatch verification points, and dock checkpoints.
| Warehouse location | Why it fits static dimensioning | |
|---|---|---|
|
Captures pallet dimensions when freight enters the warehouse |
||
|
Creates a record before storage, staging, or shipment |
||
|
Confirms pallet data before carrier handoff |
||
|
Captures dimensions before pallets are loaded or released |
||
|
Supports inbound or outbound measurement near the freight handoff point |
||
|
Combines dimension capture with weight capture when a compatible and validated scale is connected |
||
|

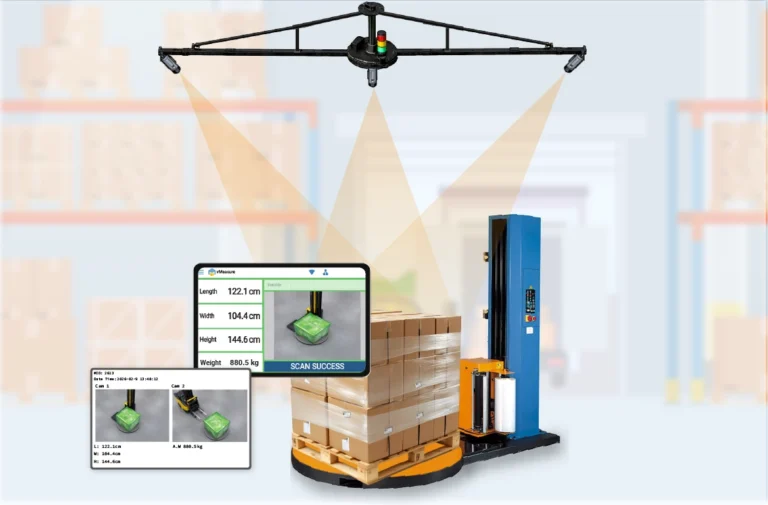

Fits workflows where pallets already stop for wrapping |
||
|
Captures pallet data before freight moves to the next outbound path |
||
A fixed scan point should not be placed somewhere just because space is available. It should match how pallets already move through the warehouse.
See how vMeasure fits into your parcel measurement workflow.
Watch how vMeasure parcel dimensioning systems capture parcel dimensions in under 2 seconds.
Where Should Static Pallet Dimensioning Be Used?
Static pallet dimensioning should be placed right at a point where pallets already stop, wait, get checked, or pass through a required step. The best location is not always the largest open area. It is the point where pallet measurement fits into the normal warehouse flow.
Common locations include receiving checkpoints, pallet audit stations, outbound staging, scale stations, dispatch verification points, and dock checkpoints.
| Warehouse location | Why it fits static dimensioning | |
|---|---|---|
|
Receiving checkpoint |
Captures pallet dimensions when freight enters the warehouse |
|
|
Pallet audit station |
Creates a record before storage, staging, or shipment |
|
|
Dispatch verification point |
Confirms pallet data before carrier handoff |
|
|
Outbound staging area |
Captures dimensions before pallets are loaded or released |
|
|
Dock checkpoint |
Supports inbound or outbound measurement near the freight handoff point |
|
|
Scale station |
Combines dimension capture with weight capture when a compatible and validated scale is connected |
|
|
Stretch-wrapper station |
Fits workflows where pallets already stop for wrapping |
|
|
Cross-dock checkpoint |
Captures pallet data before freight moves to the next outbound path |
|
A fixed scan point should not be placed somewhere just because space is available. It should match how pallets already move through the warehouse.
When Does a Fixed Pallet Scan Point Make Sense?
A fixed pallet scan point makes sense when the warehouse has a repeatable pallet flow. In other words, pallets pass through the same place often enough for measurement to become part of the regular process.
The best fit is a warehouse where pallets already stop for receiving, weighing, wrapping, auditing, staging, dispatch, or carrier handoff. In that case, dimensioning becomes part of an existing step instead of becoming a separate task.
A fixed scan point makes sense when the operation has these conditions:
| Fit signal | What it means | |
|---|---|---|
|
Pallets already stop at a checkpoint |
The scan station fits into the current flow |
|
|
Manual measurement creates delays |
Operators spend time using tape measures, height sticks, or manual notes |
|
|
Freight records need better proof |
Dimensions, images, IDs, and timestamps matter during review |
|
|
Data entry errors create rework |
Measurement data needs to move into digital records |
|
|
Pallets are measured for shipping or receiving |
The scan point supports freight documentation or warehouse records |
|
|
Warehouse layout has a controlled zone |
The scan area stays clear of forklifts, racks, guardrails, and clutter |
|
|
The operation needs scan history |
Past records need to be searched by shipment ID, pallet ID, or other references |
|
A static setup may not be the best fit when pallets are built across many dock doors and never pass through a consistent checkpoint. It also needs a proper site review if forklift paths, ceiling clearance, floor space, or fixed obstructions make it hard to create a controlled scan zone.
Static Pallet Dimensioning vs Manual or Mobile Measurement
A static pallet dimensioning system is not the only way to measure palletized freight. Manual measurement and mobile measurement also exist. The right option depends on pallet volume, warehouse layout, repeatability, proof requirements, and data needs.
| Measurement approach | Best fit | Common limitation |
|---|---|---|
|
Manual measurement |
Low-volume or occasional pallet measurement |
Slower, operator-dependent, and harder to prove later |
|
Mobile measurement |
Flexible areas where pallets do not follow a fixed route |
Less controlled when measurement conditions keep changing |
|
Static pallet dimensioning |
Repeatable receiving, audit, dispatch, scale, wrapper, or dock workflows |
Needs a defined scan zone and suitable warehouse layout |
A static pallet dimensioning system is usually preferred where every pallet that passes through gets measured the same way, under the same conditions, with the same data attached to the record. It is not only about getting dimensions. It is about creating a repeatable process around the scan.
For example, a dispatch workflow may look like this:
- The pallet moves to the outbound checkpoint.
- The operator scans or enters the shipment reference.
- The pallet dimension scanner captures length, width, and height.
- Weight is captured if a compatible and validated scale is connected.
- Images and timestamp are linked to the scan record.
- The pallet moves to staging, loading, or carrier handoff.
That repeatable flow is the main reason static dimensioning fits warehouses with defined pallet movement.
How Does Warehouse Layout Affect Static Pallet Dimensioning?
Warehouse layout is one of the key factors in a static pallet dimensioning project. A good scan point should be placed where the pallet already moves, but it also needs enough space, clearance, and visibility for clean measurement.
A controlled scan zone should account for:
- Forklift entry path
- Forklift exit path
- Pallet placement area
- Nearby racks, posts, walls, and guardrails
- Dock door movement
- Operator position
- Scale or wrapper location
- Network and power access
- Lighting and glare
- Freight staging before and after the scan
The scan point should not create extra turns, backtracking, or congestion. It should also stay clear while measurement is happening. If another pallet, forklift, rack, guardrail, or post enters the scan zone, the measurement process becomes harder to control.
A fixed scan point should be planned as part of the warehouse flow, not treated as just another technology installation.
Talk to us about your freight dimensioning setup and where a controlled scan zone fits in your warehouse layout.
What Data Should a Pallet Dimension Scanner Capture?
The measurement itself length, width, height is the starting point, not the finish line.
A pallet dimension scanner should capture length, width, and height. In a stronger workflow, the scan record should also connect to an ID, timestamp, image proof, export fields, and weight when a compatible and validated scale is used.
This is where a warehouse pallet dimensioner becomes more useful than a tape measure. The value is not just the dimension result. It is the connection between the measurement, pallet reference, visual record, and the next system in the workflow.
How Should Buyers Evaluate a Pallet Dimensioner for Warehouse Use?
To evaluate a pallet dimensioner, have this as your first question “where will the pallet stop, and what needs to happen after the scan?
Use this checklist before selecting a static pallet dimensioning system.
| Evaluation area | Questions to ask | |
|---|---|---|
|
Workflow fit |
Does the pallet already stop at receiving, audit, dispatch, scale, wrapper, or dock? |
|
|
Scan zone |
Is there a controlled area where the pallet sits clearly during measurement? |
|
|
Forklift path |
Can the forklift enter and exit without blocking traffic? |
|
|
Data capture |
Are dimensions, ID, timestamp, image proof, and weight required? |
|
|
Scale workflow |
Is weight needed, and has the scale been validated for integration? |
|
|
System connection |
Should data move to a WMS, TMS, ERP, OMS, rate engine, or carrier software? |
|
|
Proof requirement |
Are images needed for freight audit, customer service, dispatch review, or claims review? |
|
|
Search and reporting |
Does the operation need scan history by shipment ID, order, pallet ID, or BOL? |
|
|
Site conditions |
Are floor space, vertical clearance, power, network, and lighting suitable? |
|
|
Limitations |
Does the freight include black shrink wrap, shiny surfaces, or out-of-envelope loads? |
|
A fixed scan point is usually a good investment when the answers point to a repeatable process, a clear business record, and a defined next step after measurement.
How vMeasure Pallet Ultima Fits Static Pallet Dimensioning Workflows
vMeasure Pallet Ultima fits static pallet dimensioning workflows where the warehouse needs a fixed, camera-based pallet measurement station.
It captures pallet-level length, width, and height. It also captures images, barcode or ID, timestamp, and weight when connected to a compatible and validated scale. The scan record is stored in vMeasure Forge and can be used for review, export, and integration workflows.
The best-fit placement follows one simple rule:
Place vMeasure Pallet Ultima where pallets already stop.
That might be:
- A receiving checkpoint
- A dispatch verification point
- A pallet audit station
- A dock checkpoint
- A scale station
- A stretch-wrapper station
- An outbound staging point
- A freight documentation station
vMeasure Pallet Ultima supports warehouse, freight, and business system workflows through approved integration paths such as REST API, webhooks.
The right path depends on the customer’s system and workflow.
