Dimensioners that measure anything from parcels to pallets
| vMeasure freight measurement hardware specifications | ||
|---|---|---|
|
Maximum Dimensions (L – W – H) |
98.4 – 98.4 – 98.4 in 8.2 – 8.2 – 8.2 ft 250 – 250 – 250 cmhidden text |
|
|
Minimum Dimensions (L – W – H) |
9.4 – 9.4 – 4.7 in 0.8 – 0.8 – 0.4 ft 24 – 24 – 12 cmhidden texttx |
|
|
Measurement Accuracy |
Length & Width – 2 cm / 0.8 in Height – 1 cm / 0.4 in |
|
|
Dimensioning Timehidden |
2-3 seconds |
|
|
Installation Height |
4.1 m / 13.4 ft (Complete Setup) 3.6 m / 11.8 ft (Camera Height) |
|
| vMeasure freight measurement hardware specifications | ||
|---|---|---|
|
Maximum Dimensions (L – W – H) |
154 – 150 – 134 in 13 – 12 – 11 ft 390 – 380 – 340 cmhidden text |
|
|
Minimum Dimensions (L – W – H) |
9.4 – 9.4 – 4.7 in 0.8 – 0.8 – 0.4 ft 24 – 24 – 12 cmhidden texttx |
|
|
Measurement Accuracy |
Length & Width – 2 cm / 0.8 in Height – 1 cm / 0.4 in |
|
|
Dimensioning Timehidden |
2-3 seconds |
|
|
Installation Height |
5 m /16 ft (Complete Setup) 4 m / 13 ft (Camera Height) |
|

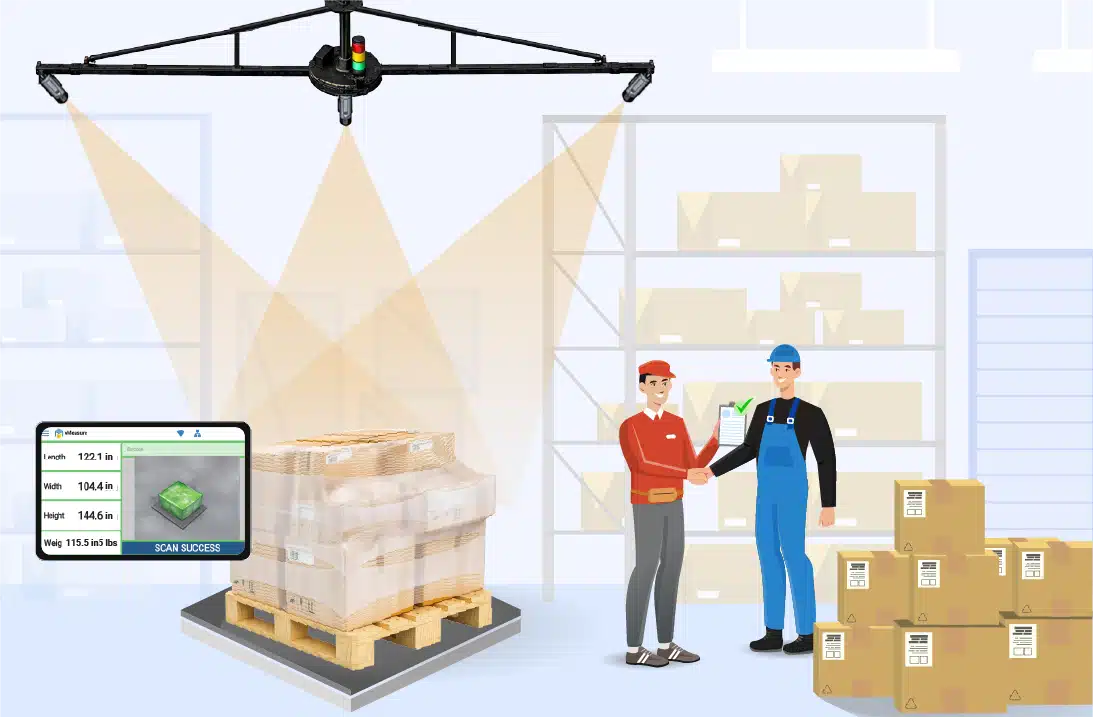

Place the pallet on your floor scale to capture weight. vMeasure captures dimensions at the same station, so both are recorded together before the pallet moves on.
Our vMeasure freight measurement hardware captures dimensions while the pallet is at rest, reducing variation caused by movement or shifting loads.
LTL terminals generate BOLs or outbound paperwork right after weighing. Integrating freight measurement hardware captures dimensions in that same step, so you don’t chase data later.
Pallets get pulled aside when dimensions are missing or questioned. Capturing weight and dimensions at the floor scale reduces rework and dock congestion during peak hours.
vMeasure remove manual measurement gaps by capturing the full freight record at a single controlled station before they move to the dock.
For LTL terminals and 3PL audit lanes, these dimensions and weight creates an accurate document during carrier audits and shipping cost calculation
“..We are always providing the correct information to the shipper and end customer and avoiding any correction charges. Integration with UPS WorldShip is seamless, allowing us to import data accurately...”
John Schell
Vice President
Pace International
Drew
Head of Distribution
Victory Supply
“...The setup of the vMeasure literally took me an hour to do. It was really quick, just a couple of screws to put together, and it all came in one package, and I set it up very quickly…”
Dan Kennedy
CEO
SupplementSource.ca
“...The cloud-based functionality makes information available to our entire team and able to update in our inventory records of ERP immediately versus cumbersome uploads of manual data...”
Linford Martin
Head of Operations
Outback Toys
Automatically capture detailed freight photos, providing visual verification that helps in quality control and claims resolution.
Generate customized reports that provide valuable insights helping you in making informed decisions and improve processes.
Yes. Freight measurement hardware works with software that processes, stores, and manages captured data. This freight measurement software links measurements to pallet IDs and makes the data available for shipping documentation, audits, and system integrations.
Tape measure is taking too much of your time and making you spend so much on your freight. You could go from being hit with exorbitant shipping charges to paying only for what you ship. Not a penny more.
