Dimensioners that measure anything from parcels to pallets
Capture dimensions and weight for 2,000 to 3,000 boxes and polybags per hour in one pass, giving you accurate data to calculate shipping costs quickly and reduce billing discrepancies.
Built for freight forwarders and 3PLs handling high-volume parcel operations.
Our in-motion dimensioning solutions are designed to handle a wide range of package sizes and shapes.
| vMeasure In-motion Dimensioning Solution Specifications | |
|---|---|
|
Min Dimensions |
2 x 2 x 2 in | 5 x 5 x 5 cm hidden text
|
|
Max Dimensions |
20 x 15.8 x 15.8 in | 50 x 40 x 40 cmhidden text
|
|
Measurement Accuracy |
Cubes & Cuboids: 5 mm (0.2 in) Irregular Shapes: 10 mm (0.4 in)hidden text |
|
Inter-box Distance |
12 in | 30 cm hidden textmobiledimension |
|
Max Conveyor Speed |
3 ft/sec |
1 m/sechidden textmobile dimension |
|
Conveyor Type |
Flat Conveyor Belthidden textmobilediemnsion |
|
Conveyor Belt Width |
24-30 in | 60-75 cmhidden textmobile dimension |
|
Trigger Mechanism |
Sensor mounted on the side of the conveyor |
|
Mounting Type hi |
Floor mount, typically drilled into the floor, with options for custom mechanical setups. |
| vMeasure In-motion Dimensioning Solution Specifications | |
|---|---|
|
Min Dimensions |
2 x 2 x 2 in | 5 x 5 x 5 cm hidden text
|
|
Max Dimensions |
20 x 15.8 x 31 in | 50 x 40 x 80 cmhidden text
|
|
Measurement Accuracy |
Cubes & Cuboids: 10 mm (0.4 in) Irregular Shapes: 10 mm (0.4 in)hidden text |
|
Inter-box Distance |
12 in | 30 cm hidden textmobiledimension |
|
Max Conveyor Speed |
3 ft/sec |
1 m/sechidden textmobile dimension |
|
Conveyor Type |
Flat Conveyor Belthidden textmobilediemnsion |
|
Conveyor Belt Width |
24-30 in | 60-75 cmhidden textmobile dimension |
|
Trigger Mechanism |
Sensor mounted on the side of the conveyor |
|
Mounting Type hi |
Floor mount, typically drilled into the floor, with options for custom mechanical setups. |

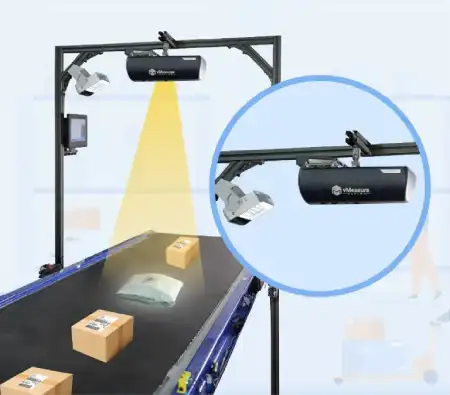

Install the vMeasure in-motion dimensioning solution between packing and sorting stations to automatically capture barcode, dimensions, and weight as parcels move along the conveyor.
By capturing the exact dimensions of each parcel, our dimensioning solution gives your shipping software accurate data to calculate shipping charges and reduce billing discrepancies.
Our dimensioning solution seamlessly integrates with checkweighers to verify that each package meets carrier dimensional and weight requirements before dispatch.
By integrating with print-and-apply, labeling, and sorting systems, parcels are quickly and accurately labeled and sorted according to their dimensions and weight, speeding up the entire process.
Our dimensioning solution provides accurate parcel measurements that improve palletizing and loading, make better use of space in gaylords and trailers, and reduce transportation costs.
Growing parcel volumes and faster conveyor speeds make manual data capture difficult to keep up with. vMeasure automates dimension, weight, and barcode capture in motion to match your conveyor throughput.
Throughput exceeds 2,000 parcels per hour, and pausing each item reduces line efficiency.
Your conveyors operate nonstop, leaving no idle time for manual or semi-automatic scans.
Sortation or print-and-apply systems need live dimension data to trigger downstream actions.
Multiple conveyor lines require unified, automated data capture for the same WMS.
vMeasure parcel in-motion dimensioning solutions integrate effortlessly, ensuring quick setup and a smooth transition with your existing systems.
John Schell
Vice President
Pace International
“...vMeasure has increased our throughput and efficiency by cutting down the amount of data entry for each shipment. Every package scanned for dimensions also has a picture taken as well...”
Drew
Head of Distribution
Victory Supply
Dan Kennedy
CEO
SupplementSource.ca
“...The cloud-based functionality makes information available to our entire team and able to update in our inventory records of ERP immediately versus cumbersome uploads of manual data...”
Linford Martin
Head of Operations
Outback Toys
An in-motion dimensioning solution is an automated system that captures parcel dimensions and barcode data as packages move along a conveyor without stopping. When integrated with a checkweigher, it also records actual weight.
The system combines the captured data and sends it to integrated WMS, TMS, ERP, shipping, sorting, or print-and-apply systems in real time.
Still unsure about procuring dimensioning solutions for your operations to capture the accurate dimensions, weight, and volume of your SKUs or parcels?
