Too big for your tape measure? Try vMeasure
Use our dimensional weight scanners to measure dimensions and capture images/videos of parcels that are too large or to small for conveyours in the exclusion flow, without needing any additional dimensioning steps.
3PLs and E-commerce Retailers use the floor mounting options
to fit tight packing stations
When to use a floor mounting option?

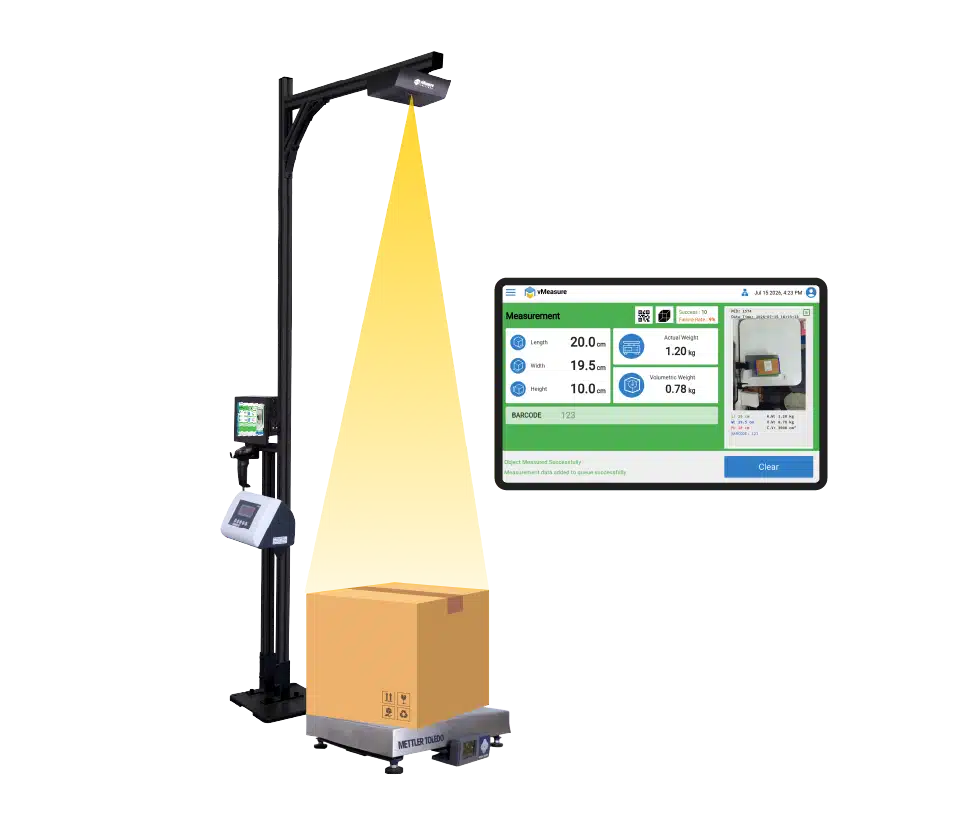

Instantly go into production with the vMeasure dimensional weight scanners by mounting them directly on the floor at your pack station to measure all parcels eliminated by the conveyor, including heavy and large parcels.
Parcel Workflow
Suitable for parcel throughput of 250 – 300 parcels per hour.
Exclusion Flow
Best for parcels above 20 inches that are rejected by automatic conveyor systems.
Heavy-Duty Handling
Ideal for larger, heavier parcels that are difficult to lift manually. The floor-mounted system allows parcels to be wheeled or conveyed directly beneath the dimensioner.
Dedicated Measurement Zone
Ideal for facilities that benefit from having a fixed area for dimensioning, ensuring a streamlined workflow and organized space.
Start dimensioning right from day 1. In less than 30 minutes
We make dimensioning simple, So why make the installation of dimensional weight scanners complex?
- No technical expertise required for installation​.
- Easy DIY setup with a simple design and no complex assembly required.
- First dimension within 30 minutes of device installation.​
vMeasure Parcel Ultima – dimensioning capabilities
Measure anything from small envelopes to mid-sized refrigerators with the vMeasure Parcel Ultima. Simply adjust the mount height to 1.1 or 1.5 meters for small and medium objects or use the separate hardware at 2.2 meters for larger items.
| vMeasure Parcel Ultima Specifications | |
|---|---|
|
Minimum Dimensions (L – W – H​) |
1.2 x 1.2 x 0.8 in* 3 x 3 x 2 cm (* For items below 0.8 inches in height, a special envelope base plate is required) |
|
Maximum Dimensions (L – W – H​) |
39.4 x 29.5 x 17.7 in​ 100 x 75 x 45 cm |
|
Accuracy |
Cubes/Cuboids – 0.2 in / 0.5 cm​ Other Objects – 0.4 in / 1 cm |
|
Mounted on |
Table / Mobile Cart / Mechanical Conveyor |
|
Data captured |
|
* For items below 0.8 inches in height, a special envelope base plate is required​
| vMeasure Parcel Ultima Specifications | |
|---|---|
|
Minimum Dimensions (L – W – H​) |
2 x 2 x 2 in​ 5 x 5 x 5 cm |
|
Maximum Dimensions (L – W – H​) |
53.1 x 41.3 x 33.5 in 135 x 105 x 85 cm |
|
Accuracy |
0.4 in / 1 cm |
|
Mounted on |
Table / Mobile Cart / Mechanical Conveyor |
|
Data captured |
|
| vMeasure Parcel Ultima Specifications | |
|---|---|
|
Minimum Dimensions (L – W – H​) |
3.9 x 3.9 x 3.9 in​ 10 x 10 x 10 cm |
|
Maximum Dimensions (L – W – H​) |
78.7 x 59.1 x 55.1 in​ 200 x 150 x 140 cm |
|
Accuracy |
0.6 in / 1.5 cm​ |
|
Mounted on |
Floor / Mechanical Conveyor |
|
Data captured |
|
Check out what 3PLs, Retailers, and Manufacturers have to say about vMeasure
Frequently asked questions
1. What are the suitable mounting options for dimensional weight scanners in my operation?
The floor mounting option is typically used during the exclusion flow or when the parcels measured are generally medium to large. The choice of mounting options depends on the use case and the point of deployment.
For instance, the mobile cart mounting option is used at the receiving station especially if there are heavy parcels coming inside the warehouse because it provides the much-needed mobility. Therefore, the warehouse staff doesn’t need to carry the parcel to the dimensional weight scanner.
For instance, the mobile cart mounting option is used at the receiving station especially if there are heavy parcels coming inside the warehouse because it provides the much-needed mobility. Therefore, the warehouse staff doesn’t need to carry the parcel to the dimensional weight scanner.
2. Are there any specific requirements for surface where the vMeasure dimensional weight scanners is placed?
The surface needs to be flat, and the work area should be clean. Ensure that the surrounding is free of moisture.
3. How is the floor-mounted dimensional weight scanners secured to the floor?
The device comes with a base plate where the lower pole is secured using nuts. This base plate acts as a counter-weight, thus keeping the device erect.
4. Can the floor-mounted system be relocated easily if warehouse layouts change?
While the system is designed to be stationary, it can be unmounted and relocated if necessary. However, this process requires caution, and all precautions should be taken to ensure the safety of the device
5. Can the floor-mounted dimensioning weight scanner be used in any warehouse setup?
It is most effective when there is ample floor space available. It requires a dedicated area that is free from disturbances to function optimally.
