Dimensioners that measure anything from parcels to pallets
| vMeasure automated pallet dimensioner specifications | ||
|---|---|---|
|
Maximum Dimensions (L – W – H) |
98.4 – 98.4 – 98.4 in 8.2 – 8.2 – 8.2 ft 250 – 250 – 250 cmhidden text |
|
|
Minimum Dimensions (L – W – H) |
9.4 – 9.4 – 4.7 in 0.8 – 0.8 – 0.4 ft 24 – 24 – 12 cmhidden texttx |
|
|
Measurement Accuracy |
Length & Width – 2 cm / 0.8 in Height – 1 cm / 0.4 in |
|
|
Dimensioning Timehidden |
2-3 seconds |
|
|
Installation Height |
4.1 m / 13.4 ft (Complete Setup) 3.6 m / 11.8 ft (Camera Height) |
|
| vMeasure automated pallet dimensioner specifications | ||
|---|---|---|
|
Maximum Dimensions (L – W – H) |
154 – 150 – 134 in 13 – 12 – 11 ft 390 – 380 – 340 cmhidden text |
|
|
Minimum Dimensions (L – W – H) |
9.4 – 9.4 – 4.7 in 0.8 – 0.8 – 0.4 ft 24 – 24 – 12 cmhidden texttx |
|
|
Measurement Accuracy |
Length & Width – 2 cm / 0.8 in Height – 1 cm / 0.4 in |
|
|
Dimensioning Timehidden |
2-3 seconds |
|
|
Installation Height |
5 m /16 ft (Complete Setup) 4 m / 13 ft (Camera Height) |
|
vMeasure pallet dimensioner automatically captures dimensions of freight with transparent shrink wrap, protrusions, and irregular shapes with 0.4-inch accuracy. This ensures exception freight keeps moving through your terminal without delays or manual re-measurement.
vMeasure automated pallet dimensioner provides accurate dimensions instantly, ensuring overlength, over-height, and density-based accessorial charges are applied correctly. This reduces missed or disputed charges and secures additional revenue.
With the vMeasure automated pallet dimensioner, discrepancies between declared and actual dimensions are identified at intake. This helps prevent costly remeasurement, rerouting, and unnecessary operational disruptions.
Each measurement from vMeasure pallet dimensioner is accompanied by a timestamped image, giving you clear visual proof of the measured dimensions. This helps resolve disputes faster, reduce back-and-forth, and avoid additional charges.

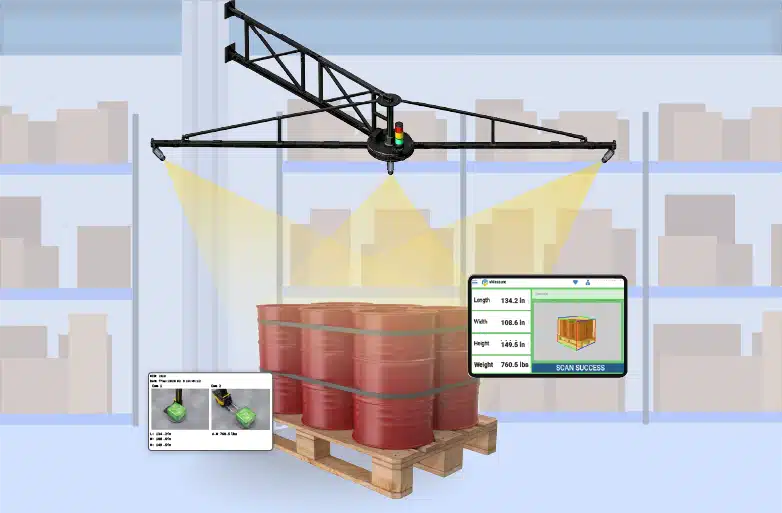

Mount above or beside dock doors to dimension exception freight instantly as it crosses the threshold before it hits the freight floor.
Mount on terminal columns to dimension exception freight on the spot without moving it to a separate inspection area.
Install above outbound staging lanes for final dimension verification, ensuring accurate freight class and accessorial charges on the BOL.
“..We are always providing the correct information to the shipper and end customer and avoiding any correction charges. Integration with UPS WorldShip is seamless, allowing us to import data accurately...”
John Schell
Vice President
Pace International
Drew
Head of Distribution
Victory Supply
“...The setup of the vMeasure literally took me an hour to do. It was really quick, just a couple of screws to put together, and it all came in one package, and I set it up very quickly…”
Dan Kennedy
CEO
SupplementSource.ca
“...The cloud-based functionality makes information available to our entire team and able to update in our inventory records of ERP immediately versus cumbersome uploads of manual data...”
Linford Martin
Head of Operations
Outback Toys
Automated pallet dimensioner cost varies based on camera setup, integration requirements, and terminal volume. vMeasure operates on a subscription-based pricing model with no large upfront capital expenditure. Visit our pricing page or schedule a call to get a plan sized for your terminal volume.
